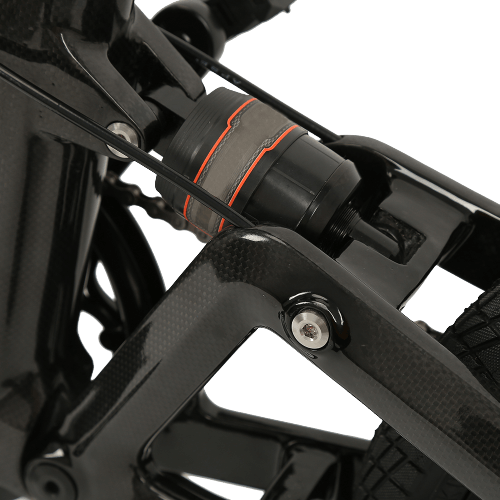

KK7016 Carbon Fibre Electric Folding Bike (15KG, 250~350W, 252Wh, Rear Suspension)

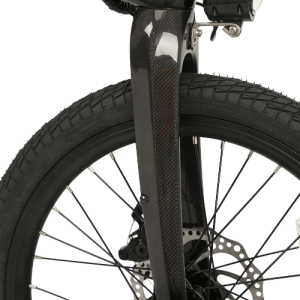

  • Carbon Fiber Frame and Front Fork
  • Lightweight 15 kg and foldable (expand size: 1500*580*1100mm​, folding size: 850*405*700mm​)
  • Multiple colors are available and customizable

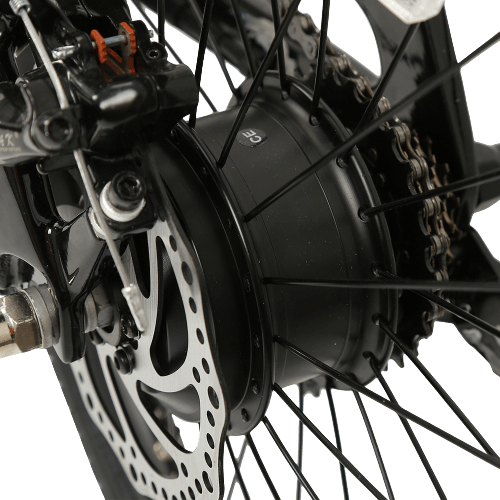

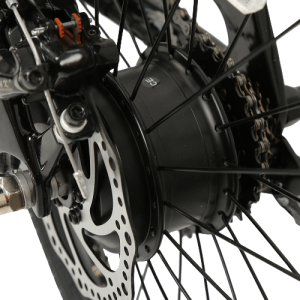

  • 250w/350w high speed rear motor​
  • Default 36V/5.2Ah lithium battery (alternative Samsung 36V 7.0Ah option)
  • Seat tube battery system
  • Shimano 7 speed
Basic Information
Model NO. KK7016
Weight 15 KG

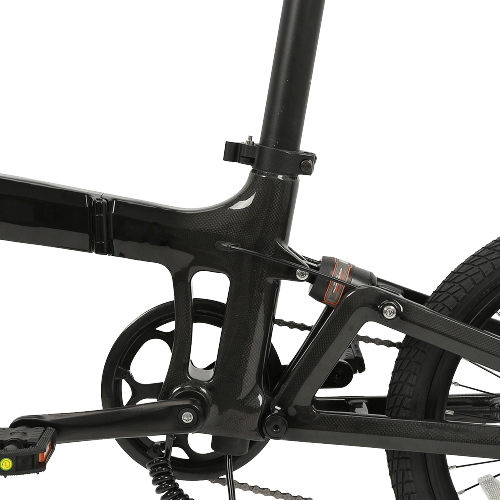

Frame Carbon Fiber

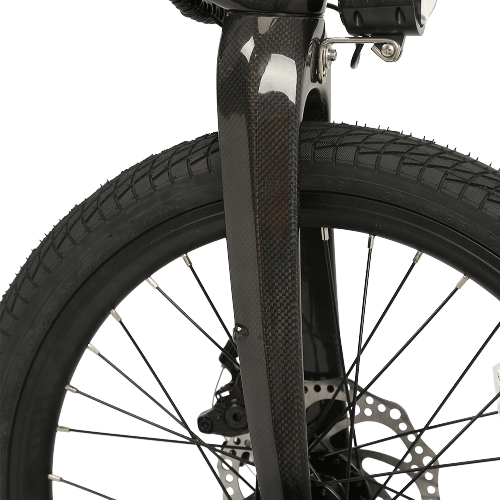

Front Fork Carbon Fiber
Standard Loading 100kg/220lb
Riding System 5PAS+ Cruise
Expand Size 1500*580*1100mm

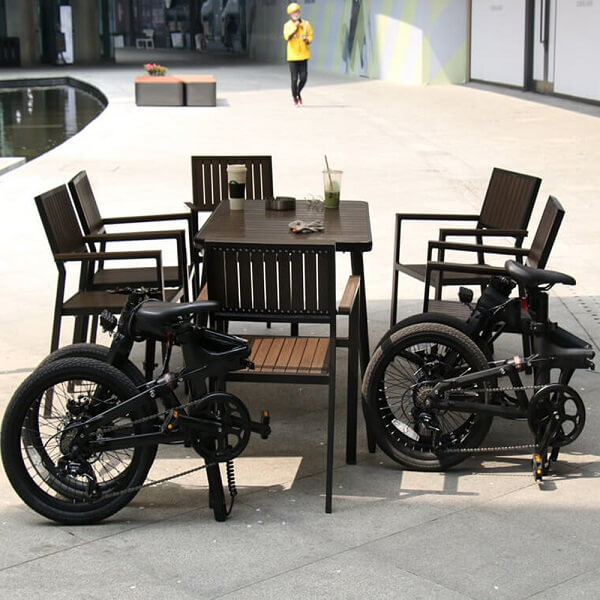

Folding Size 850*405*700mm
Components Specifications
Brakes F/R Mechanical 160mm G3 Disc Brake
Brake Lever Adjustable aluminum alloy
Shifters SHIMANO Mf-Tz500-7 Speed
Derailleur SHIMANO RD-TY300
Gear Crank Prowheel 48T
Rear fire wheel SHIMANO MF-TZ500-7
Tire Kenda 20*1.95 inch
Wheel Diameter 20 inch
Handle (R) MICROSHIFT 7S/P

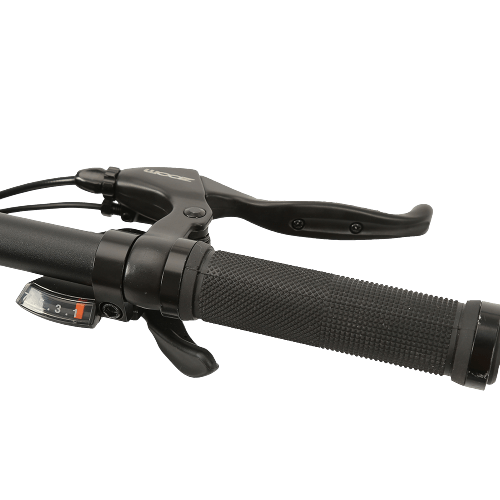

Grip High-density EVA shock-absorbing and non-slip comfortable handle

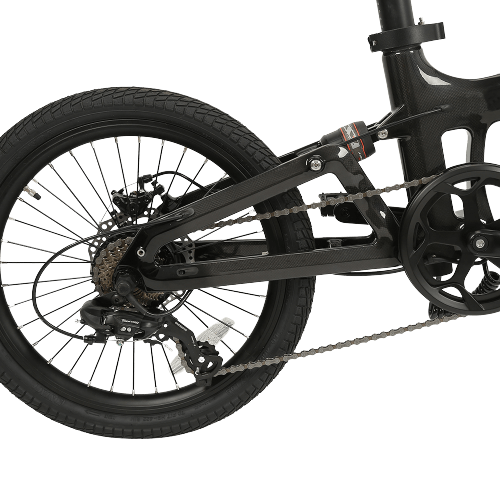

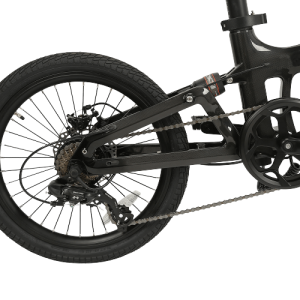

Chain KMC special chain

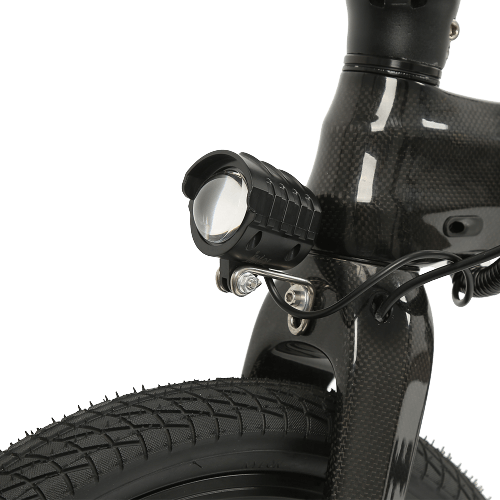

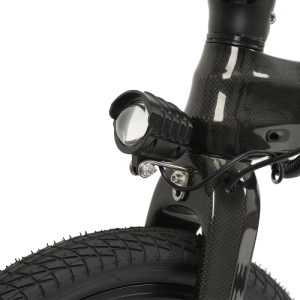

Light F/R LED lights
Rim Double-layer al-aluminum disc brake cutter ring
Pedal Folding non-slip pedal

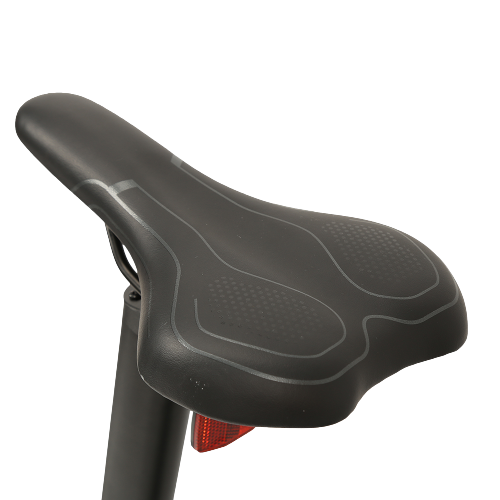

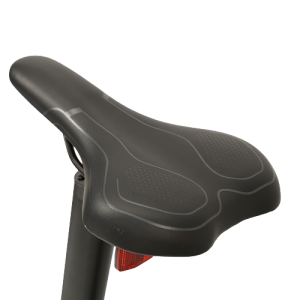

Saddle Ergonomic comfort
Electric System Specifications
Motor 250W/350W High-Speed Motor
Battery 36V 5.2Ah ( Samsung 7.0Ah)
Battery Management System Patent seat tube battery system
Charging Time 3 hours
Controller Kuake sine wave controller

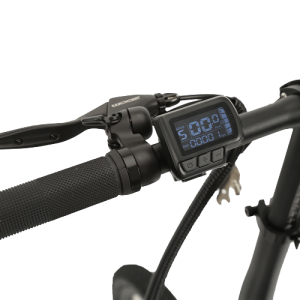

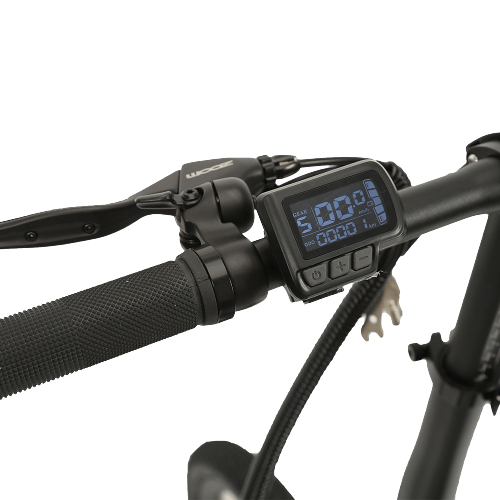

Display LCD Display
Recharge Times 800~1000 times
Endurance Mileage PAS>50km
Max Speed ≤25km/h
